Pin Modulator

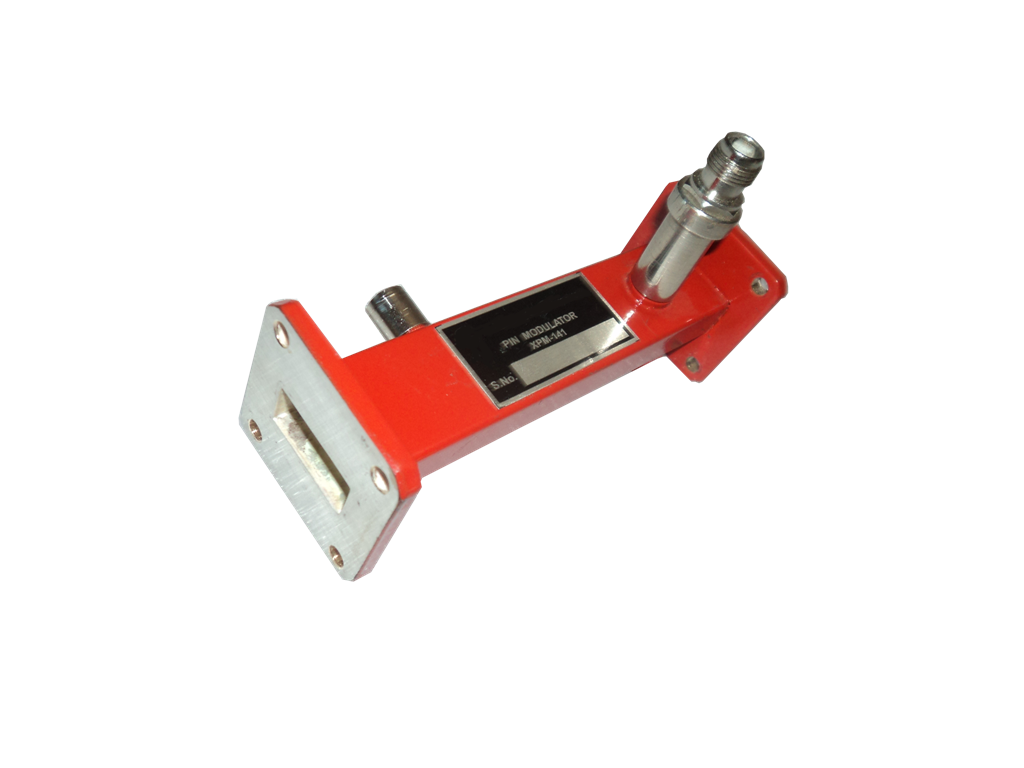

PIN Diode modulators offer an ideal way for amplitude and the pulse modulation of microwave signal through wide range of frequencies. These modulators utilize PIN Diode which are mounted across the waveguide line a R.F. isolated DC bias lead passing to an external TNC (F) Connectors.


Specifications

Model
 Bias Voltage (Max)
 Output Connectors Waveguide
XPM-141 10 volts TNC (F) WR-90
